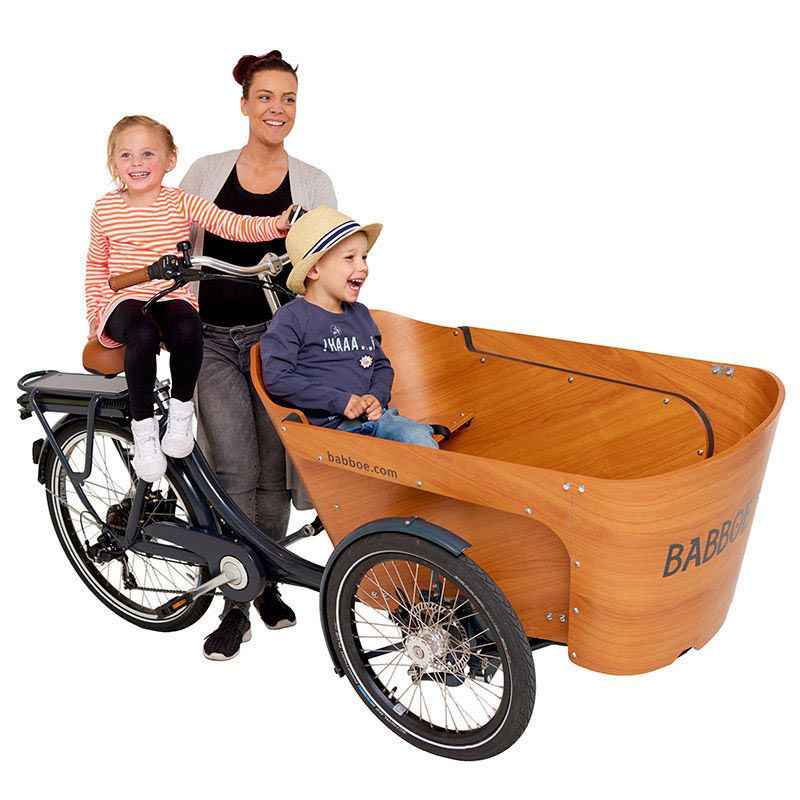

Babboe Carve-E
The best of two worlds: the stability of a tricycle combined with the manoeuvrability of a two-wheeled cargo bike. Thanks to the 'carve mechanism' the box moves along the bends, making you cycle like on a two-wheeler. This provides a unique cycling experience and excellent road holding.
The Babboe Carve-E has electric pedal assistance for effortless cycling up inclines and over long distances. A special Maxi-Cosi carrier is optional on the electric Babboe Carve-E, for you to safely take your baby along with you, as well as an extra bench for 4 children.
- Agile cargo bike with the stability of a three-wheeler
- Front wheels and box both tilt when taking bends
- Comfortable cycling with electric pedal assistance
Popular
| Battery location | Under the luggage carrier |
|---|---|
| Motor position | Rear wheel motor |
| Force (Nm) | 40 |
| Type of gear | Derailleur |
| Number of children | 1 child, 2 children |
| Seat belts | 2 three-point seat belts |
| Charging time | 4-6 hours |
| Action radius (km) | 50-70 |
| Environment | Flat roads, Rolling roads |
| Numbers of gears | 7V |
Accu
| Charging in cargo bike possible | No |
|---|---|
| Battery charger | 42V 2.17A |

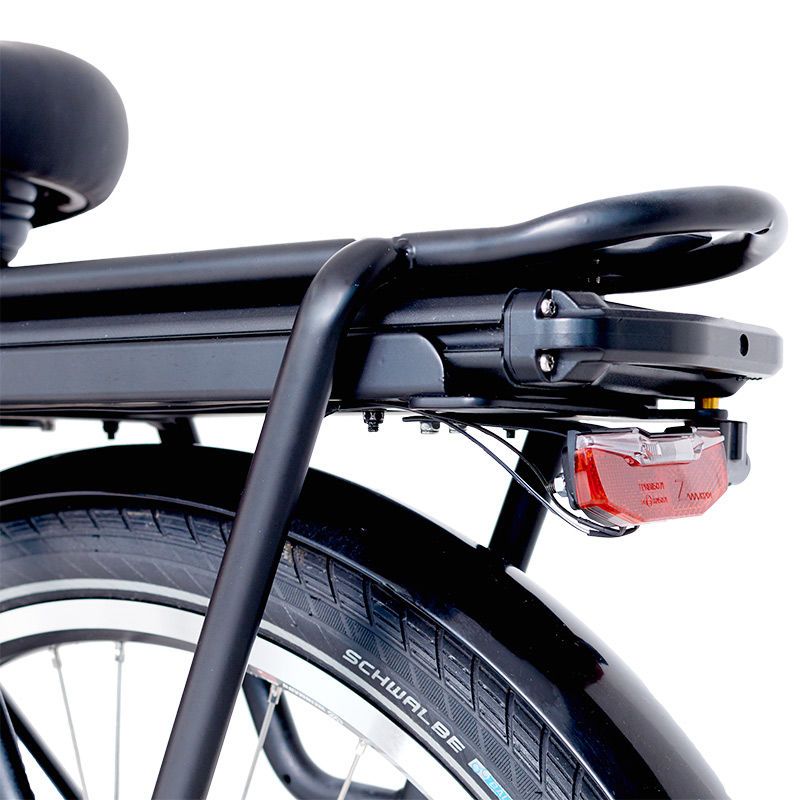

| Battery location | Under the luggage carrier |
| Removable battery | Yes |
| Battery type | Lithium-ion |
| Charging time | 4-6 hours |
| Action radius (km) | 50-70 |
Comfort
| Frame material | Steel |
|---|---|
| Luggage rack load (kg) | 20 |
| Way of parking | With the double standard |
| Adjustable saddle | Yes |
| Minimum body height | 1.57 |
| Seatpost | Unsprung |
| Sitting posture | Sportive |
| Steering dampers | No |
| Adjustable steering wheel | Yes |
| Luggage carrier | Yes |
| Suitable for Maxi-Cosi | Yes |
| Pedals | Yes |
| Environment | Flat roads, Rolling roads |
Dimensions
| Width cargo bike (cm) | 85 |
|---|---|
| Height cargo bike (cm) | 110 |
| Length cargo bike (cm) | 216 |
| Width box (cm) | 68 |
| Height box (cm) | 58 |
| Length box (cm) | 109 |
| Wheelbase (cm) | 130 |

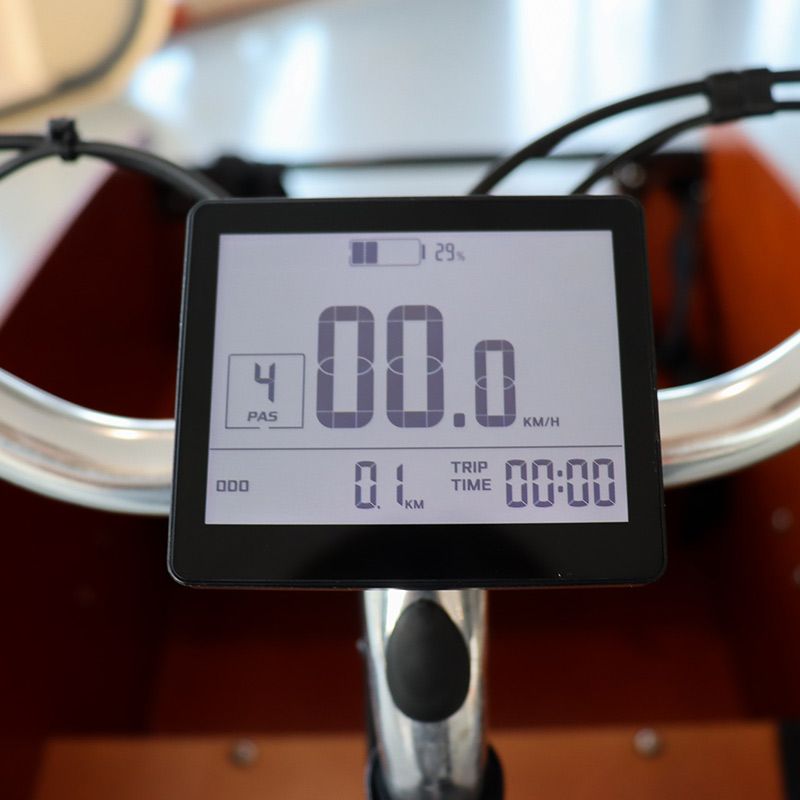

Display
| Brand display | GWA |
|---|---|
| Support modes | 8 |
| Position on the handlebar | In the center |
| Detachable display | No |
| Display type | LED |
| Micro USB | No |
Electric
| Motor | 36V 250W maintenance-free motor |
|---|---|
| Motor position | Rear wheel motor |
| Engine sound | Extremely quiet |
| Motor technology | GWA |
| Force (Nm) | 40 |
| Type of sensor | Rotation and speed |
| Maximum speed with support (km/h) | 25 |
| Walk assist | Yes |
Gears
| Brand gear | Shimano 7-speed |
|---|---|
| Type of gear | Derailleur |
| Drive type | Chain |
| Numbers of gears | 7V |
General
| Brand | Babboe |
|---|---|
| Folding benches | No |
| Number of benches | 1 |
| Box load capacity (kg) | 80 |
| Electric cargo bike | Electric cargo bike |
| Frame | Extra sturdy frame with shockproof powder coating, treated on the inside to prevent rusting. |
| Frame color | Anthracite |
| Frame size (cm) | 50 |
| Frame type | Low entry |
| Number of children | 1 child, 2 children |
| Saddle load (kg) | 100 |
| Material box | European beech wood |
| step for children | Yes |
| Box volume (L) | 350 |
| Weight (kg) | 72 |
| Water resistant | No |
Lighting
| Brand headlight | AXA |
|---|---|
| Brand rear light | AXA |
| Lighting | LED lighting via battery (front and rear) |
Safety
| Seat belts | 2 three-point seat belts |
|---|---|
| Cargo bike certification | Yes |
| Lock brand | Abus |
| Suitable for plug-in chain | No |
| ART lock certification | Yes |
| Tilt stops | Yes |
Warranty
| Warranty battery | 2 years |
|---|---|
| Warranty box | 1 year |
| Warranty frame | 5 years |
| Warranty engine | 2 years |
| Warranty parts | 2 years |
Wheels
| Anti-puncture tires | Yes |
|---|---|
| Rims | Double walled front and rear rims |
| Spokes | Extra sturdy spokes |
| Tire pressure (bar) | 4 |
| Bicycle tire brand | Schwalbe Big Apple |
| Tire size rear (inch) | 26 |
| Tire size front (inch) | 20 |
| Product specifications | Download (.pdf) |
|---|---|
| User manual | Download (.pdf) |
| User manual 2 | Download (.pdf) |
| Declaration of Conformity (DoC) | Download (.pdf) |
The Babboe cargo bikes come with a 5-year warranty on the frame and a 2-year warranty on non-wearing parts (brakes and gears). You can find the warranty periods per part in the warranty conditions.
