Babboe Curve Mountain
The electric Babboe Curve Mountain cargo bike is an elegant three-wheel cargo bike with high-quality standards. The Babboe Curve Mountain is powered by a very powerful Yamaha mid-drive motor with power sensor and has a stepless shifting system. This combination provides a smooth cycling experience!
The high spec design of the electric Babboe Curve Mountain features state-of-the-art pedal assistance, for effortless long distance rides. A special Maxi-Cosi carrier is available for the elegant three-wheel cargo bike, so you can safely transport your baby.
- Quality cargo bike, luxury design and rounded contours
- Safe entry and exit with child-friendly steps
- Powerful motor and smooth stepless shifting
Accu
| Charging in cargo bike possible | Yes |
|---|---|
| Battery charger | 42V 2.17A |

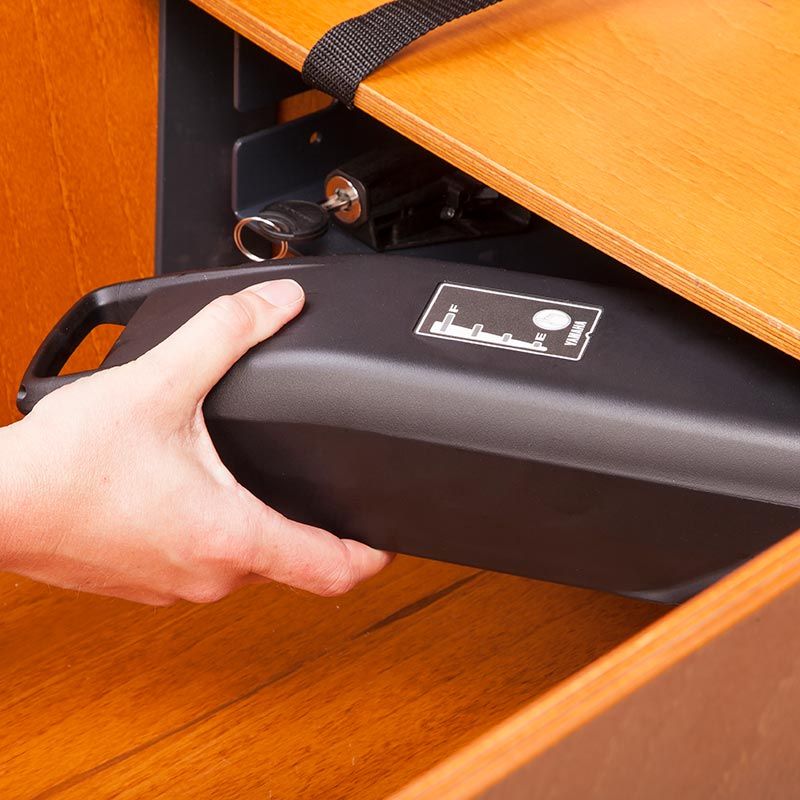

| Battery location | Under the bench |
| Removable battery | Yes |
| Battery type | Lithium-ion |
| Charging time | 4-6 hours |
| Action radius (km) | 40-60 |
Comfort
| Frame material | Steel |
|---|---|
| Luggage rack load (kg) | 20 |
| Way of parking | With the parking brake on the handlebars |
| Adjustable saddle | Yes |
| Minimum body height | 1.57 |
| Seatpost | Ungefedert |
| Sitting posture | Position assise légèrement incurvée |
| Steering dampers | Yes |
| Adjustable steering wheel | Yes |
| Luggage carrier | No |
| Suitable for Maxi-Cosi | Yes |
| Pedals | Yes |
Dimensions
| Width cargo bike (cm) | 88.4 |
|---|---|
| Height cargo bike (cm) | 110 |
| Length cargo bike (cm) | 215 |
| Width box (cm) | 63 |
| Height box (cm) | 55 |
| Length box (cm) | 82 |

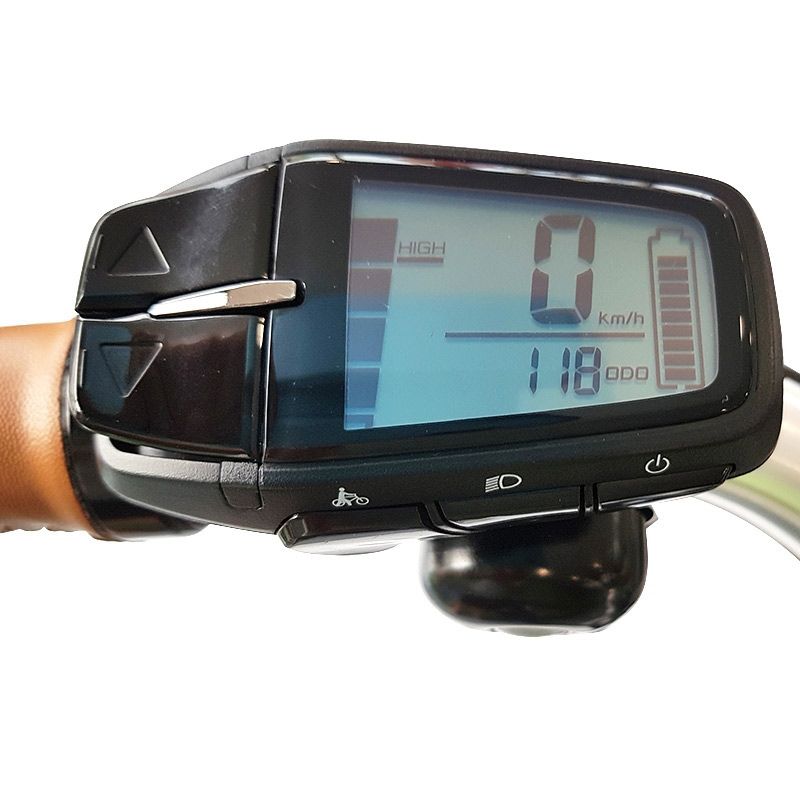

Display
| Brand display | Yamaha |
|---|---|
| Support modes | Infinit |
| Position display | Gauche sur le volant |
| Detachable display | No |
| Display type | LED |
| Micro USB | No |
Electric

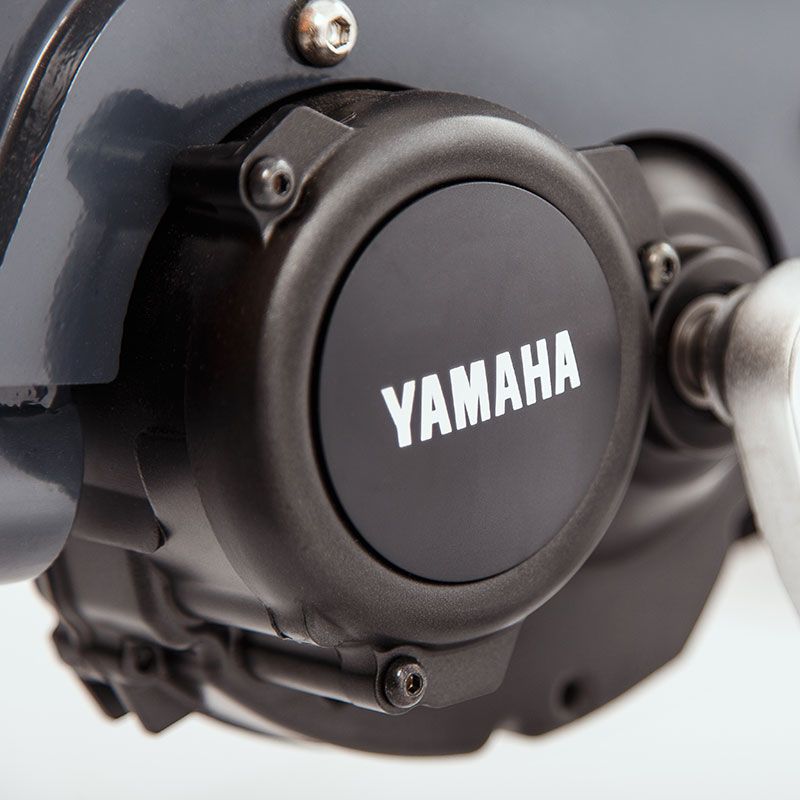

| Motor | 36V 250W maintenance-free motor |
|---|---|
| Motor position | Midmotor |
| Engine sound | Extremely quiet |
| Motor technology | Yamaha |
| Force (Nm) | 70 |
| Type of sensor | Power and speed |
| Maximum speed with support (km/h) | 25 |
| Walk assist | Yes |
Gears
| Brand gear | Enviolo NuVinci |
|---|---|
| Type of gears | Hub |
| Drive type | Chain |
General
| Brand | Babboe |
|---|---|
| Folding benches | Yes |
| Number of benches | 2 |
| Box load capacity (kg) | 100 |
| Box volume (L) | 250 |
| Electric cargo bike | Electric cargo bike |
| Frame | Extra sturdy frame with shockproof powder coating, treated on the inside to prevent rusting. |
| Frame color | Anthracite |
| Frame size (cm) | 50 |
| Frame type | Low entry |
| Number of children | 1, 2, 3, 4 |
| Saddle load (kg) | 100 |
| Material box | European beech wood |
| step for children | Yes |
Lighting
| Brand headlight | AXA |
|---|---|
| Brand rear light | Spanninga |
| Lighting | LED lighting via battery (front and rear) |
Safety
| Seat belts | 4 three-point seat belts |
|---|---|
| Cargo bike certification | TÜV |
| Lock brand | Trelock |
| Suitable for plug-in chain | Yes |
| ART ring lock certification | Yes |
| Tilt stops | Yes |
Warranty
| Warranty battery | 2 years |
|---|---|
| Warranty box | 1 year |
| Warranty frame | 5 years |
| Warranty engine | 2 years |
| Warranty parts | 2 years |
Wheels
| Anti-puncture tires | Yes |
|---|---|
| Rims | Double walled front and rear rims |
| Spokes | Extra sturdy spokes |
| Tire pressure (bar) | 4 |
| Bicycle tire brand | Schwalbe Big Apple |
| Tire size rear (inch) | 26 |
| Tire size front (inch) | 20 |
Manuals
| User manual 1 (pdf) | Download (.pdf) |
|---|
The Babboe cargo bikes come with a 5-year warranty on the frame and a 2-year warranty on non-wearing parts (brakes and gears). You can find the warranty periods per part in the warranty conditions.
Tested for safety and reliability
Babboe cargo bikes have been tested for safety and durability by the European testing authorities SGS and / or TÜV.
Tested for safety and reliability
Babboe cargo bikes have been tested for safety and durability by the European testing authorities SGS and / or TÜV.
