Babboe Curve-E
The electric Babboe Curve cargo bike is an elegant three-wheel cargo bike with high-quality standards at an affordable price. A cargo bike with which you can be seen! The Curve cargo bike is beautiful, high-quality and smart. Thanks to the electric pedal support, you always have the wind with you!
The high-end design of the electric Babboe Curve offers practical extras, such as robust tyres, child-friendly anti slip steps and concealed lighting. The Curve-E has two fixed benches that can seat up to four children. With a Maxi-Cosi carrier in the box, you can bring your baby along. Keep in mind that there will be less legroom for the children on the bench in this case.
The Babboe Curve-E has state-of-the-art brakes and electric pedal assistance with 8 modes.
- Quality cargo bike, luxury design and rounded contours
- Safe entry and exit with child-friendly steps
- Comfortable cycling with electric pedal assistance
Popular
| Battery location | Under the luggage carrier |
|---|---|
| Motor position | Rear wheel motor |
| Force (Nm) | 40 |
| Type of gear | Derailleur |
| Number of children | 1 child, 2 children, 3 children, 4 children |
| Seat belts | 4 three-point seat belts |
| Charging time | 4-6 hours |
| Action radius (km) | 50-70 |
| Environment | Flat roads, Rolling roads |
| Numbers of gears | 7V |
Accu
| Charging in cargo bike possible | No |
|---|---|
| Battery charger | 38V 2.1A |
| Battery location | Under the luggage carrier |
| Removable battery | Yes |
| Battery type | Lithium-ion |
| Charging time | 4-6 hours |
| Action radius (km) | 50-70 |
Comfort
| Frame material | Steel |
|---|---|
| Luggage rack load (kg) | 20 |
| Way of parking | With the parking brake on the handlebars |
| Adjustable saddle | Yes |
| Minimum body height | 1.57 |
| Seatpost | Unsprung |
| Sitting posture | Slightly bent seating position |
| Steering dampers | Yes |
| Adjustable steering wheel | Yes |
| Luggage carrier | Yes |
| Suitable for Maxi-Cosi | Yes |
| Pedals | Yes |
| Environment | Flat roads, Rolling roads |
Dimensions
| Width cargo bike (cm) | 88.4 |
|---|---|
| Height cargo bike (cm) | 110 |
| Length cargo bike (cm) | 215 |
| Width box (cm) | 63 |
| Height box (cm) | 55 |
| Length box (cm) | 82 |
| Wheelbase (cm) | 135 |

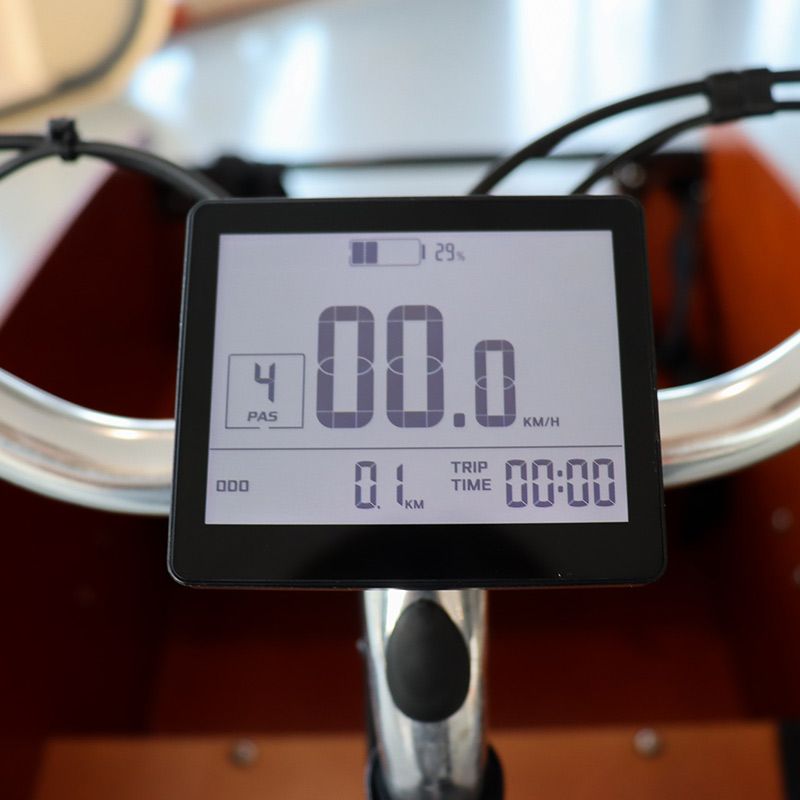

Display
| Brand display | GWA |
|---|---|
| Support modes | 8 |
| Position on the handlebar | In the center |
| Detachable display | No |
| Display type | LED |
| Micro USB | No |
Electric
| Motor | 36V 250W maintenance-free motor |
|---|---|
| Motor position | Rear wheel motor |
| Engine sound | Extremely quiet |
| Motor technology | GWA |
| Force (Nm) | 40 |
| Type of sensor | Rotation and speed |
| Maximum speed with support (km/h) | 25 |
| Walk assist | Yes |
Gears
| Brand gear | Shimano 7-speed |
|---|---|
| Type of gear | Derailleur |
| Drive type | Chain |
| Numbers of gears | 7V |
General
| Brand | Babboe |
|---|---|
| Folding benches | No |
| Number of benches | 2 |
| Box load capacity (kg) | 100 |
| Electric cargo bike | Electric cargo bike |
| Frame | Extra sturdy frame with shockproof powder coating, treated on the inside to prevent rusting. |
| Frame color | Anthracite |
| Frame size (cm) | 50 |
| Frame type | Low entry |
| Number of children | 1 child, 2 children, 3 children, 4 children |
| Saddle load (kg) | 100 |
| Material box | European beech wood |
| step for children | Yes |
| Box volume (L) | 250 |
| Weight (kg) | 73 |
| Water resistant | No |
Lighting
| Brand headlight | AXA |
|---|---|
| Brand rear light | Spanninga |
| Lighting | LED lighting via battery (front and rear) |
Safety
| Seat belts | 4 three-point seat belts |
|---|---|
| Cargo bike certification | TÜV |
| Lock brand | Abus |
| Suitable for plug-in chain | No |
| ART lock certification | Yes |
| Tilt stops | Yes |
Warranty
| Warranty battery | 2 years |
|---|---|
| Warranty box | 1 year |
| Warranty frame | 5 years |
| Warranty engine | 2 years |
| Warranty parts | 2 years |
Wheels
| Anti-puncture tires | Yes |
|---|---|
| Rims | Double walled front and rear rims |
| Spokes | Extra sturdy spokes |
| Tire pressure (bar) | 4 |
| Bicycle tire brand | Schwalbe Big Apple |
| Tire size rear (inch) | 26 |
| Tire size front (inch) | 20 |
| Product specifications | Download (.pdf) |
|---|---|
| User manual | Download (.pdf) |
| User manual 2 | Download (.pdf) |
| Declaration of Conformity (DoC) | Download (.pdf) |
The Babboe cargo bikes come with a 5-year warranty on the frame and a 2-year warranty on non-wearing parts (brakes and gears). You can find the warranty periods per part in the warranty conditions.
Tested for safety and reliability
Babboe cargo bikes have been tested for safety and durability by the European testing authorities SGS and / or TÜV.
